Product Name：Male connector
Product Number：
Added time：2014-06-30
Views：101
QQ交流
Product Details:

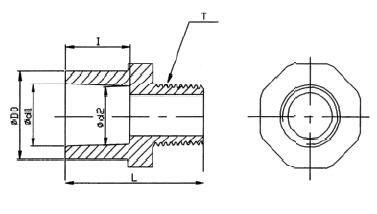

material： UPVC  CPVC  DIN





　 Size 1/2〞 3/4〞 1〞 1-1/4〞 1-1/2〞 2〞
Nom 　 (15mm) (20mm) (25mm) (32mm) (40mm) (50mm)
d1 20.30  25.30  32.30  40.30  50.30  63.30
d2 19.90  24.90  31.90  39.90  49.90  62.90
D 30.00  33.00  42.00  51.00  61.00  74.00
I 16.00  19.00  22.00  26.00  31.00  38.00
L 19.00  21.50  24.00  26.00  27.00  31.50
T NPT 1/2〞-14/ 3/4〞-14/ 1〞-1.5/ 1-1/4〞-11.5/ 1-1/2〞-11.5/ 　
PT 1〞-11/ 1-1/4〞-11/ 1-1/2〞-11/ 2〞-11/
