Product Name：Flanges (PN1.0)
Product Number：
Added time：2014-06-30
Views：135
QQ交流
Product Details:

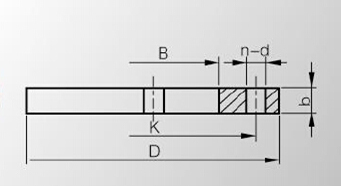

dn D K B n d b
50 150.00 110.00 55.00 4 18 18
63 165.00 125.00 68.00 4 18 20
75 185.00 145.00 80.00 4 18 20
90 200.00 160.00 95.00 8 18 20
110 220.00 180.00 115.00 8 18 22
125 250.00 210.00 130.00 8 18 22
160 285.00 240.00 165.00 8 22 24
200 340.00 295.00 205.00 8 22 24
225 340.00 295.00 230.00 8 22 24
250 395.00 350.00 255.00 12 22 26
315 445.00 400.00 320.00 12 22 28
355 505.00 460.00 360.00 16 22 30
400 565.00 515.00 408.00 16 26 32
450 615.00 565.00 458.00 20 26 35
500 670.00 620.00 508.00 20 26 38
560 780.00 725.00 568.00 20 30 42
630 780.00 725.00 638.00 20 30 42
710 895.00 840.00 720.00 24 30 54
800 1015.00 950.00 810.00 24 33 60
900 1115.00 1050.00 910.00 28 33 66
1000 1230.00 1160.00 1010.00 28 36 74
1200 1455.00 1380.00 1210.00 32 39 86
1400 1675.00 1590.00 1415.00 36 42 94
1600 1915.00 1820.00 1615.00 40 48 110
