| No. | Size | Specification | Material | Pedestal | O ring | piece | Interface |
| VP-810 | 2″-8″ | ANSI,JIS,DIN | PVC | EPDM,FPM | EPDM,FPM | PP | Flanged |
| VP-811 | 2″-8″ | ANSI,JIS,DIN | CPVC | EPDM,FPM | EPDM,FPM | CPVC | Flanged |
| VP-813 | 2″-8″ | ANSI,JIS,DIN | PVDF | EPDM,FPM | EPDM,FPM | PVDF | Flanged |
| VP-814 | 2″-8″ | ANSI,JIS,DIN | PP | EPDM,FPM | EPDM,FPM | PP | Flanged |

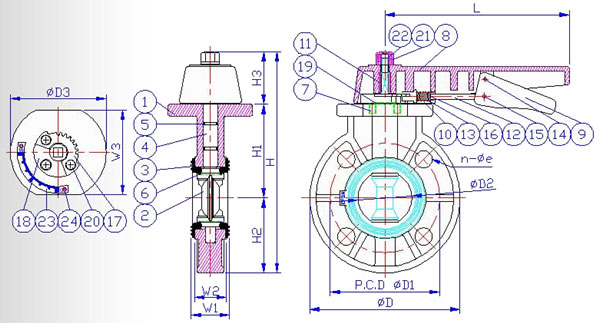

| NO. | PART | MATEPIAL | QTY |
| 1 | Body | UPVC，CPVC,PP,PVDF | 1 |
| 2 | Valve | UPVC，CPVC,PP,PVDF | 1 |
| 3 | Pedestal | EPDM,FPM | 1 |
| 4 | Center column | SUS 410 | 1 |
| 5 | O ring | EPDM,FPM | 2 |
| 6 | O ring | EPDM,FPM | 2 |
| 7 | Buried pillars | C3604 | 3 |
| 8 | Large handle | PP | 1 |
| 9 | Small handle | PP | 1 |
| 10 | Handle cover | PP | 1 |
| 11 | Buried pillars | STAINLESS STEEL | 1 |
| 12 | ChainLever | SUS304 | 1 |
| 13 | Spring | SUS304 | 1 |
| 14 | Spring pin | SUS304 | 1 |
| 15 | Spring pin | SUS304 | 1 |
| 16 | Flat Washers | SUS304 | 1 |
| 17 | Gear piece | SUS304 | 1 |
| 18 | Gear seat | PP+GF,UPVC,PVDF | 1 |
| 19 | Flat Washers | SUS304 | 1 |
| 20 | Screws | SUS304 | 3 |
| 21 | Plastic Nuts | UPVC,PVDF | 1 |
| 22 | Buried pillars | C3604 | 1 |
| 23 | Nameplate | SUS304 | 1 |
| 24 | Rivet | STAINLESS STEEL | 2 |
| SIZE | 2" | 2-½" | 3" | 4" | 5" | 6" | 8" | |
| Nom. | 50mm | 65mm | 80mm | 100mm | 125mm | 150mm | 200mm | |
| JIS | D1 | 120 | 140 | 150 | 175 | 210 | 240 | 290 |
| n-¢e | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | |
| ANSI | D1 | 121 | 140 | 152 | 191 | 216 | 241 | 298 |
| n-¢e | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 | |
| DIN | D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 |
| n-¢e | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-22 | 8-22 | |
| D | 165 | 185 | 200 | 229 | 257 | 285 | 343 | |
| 2 | 56.5 | 69.5 | 79.5 | 102.5 | 130 | 153 | 203 | |
| D3 | 105 | 120 | 123 | 135 | 164 | 169 | 201 | |
| L | 199 | 199 | 199 | 252 | 297 | 297 | 297 | |
| H | 248.5 | 267.5 | 277 | 316 | 373.5 | 404.5 | 464.5 | |
| H1 | 103 | 113 | 115 | 135.5 | 165 | 177 | 210 | |
| H2 | 82.5 | 92.5 | 100 | 114.5 | 128.5 | 142.5 | 171.5 | |
| H3 | 63 | 62 | 62 | 66 | 80 | 83 | 83 | |
| W1 | 43 | 46 | 46 | 56 | 69 | 70.5 | 85 | |
| W2 | 35 | 36 | 36 | 47 | 57 | 62 | 76 | |
| W3 | 94 | 94 | 94 | 100 | 110 | 100 | 122 | |
