Product Name：Economy Swing Check(Foot) Valve
Product Number：
Added time：2014-05-13
Views：96
QQ交流
Product Details:

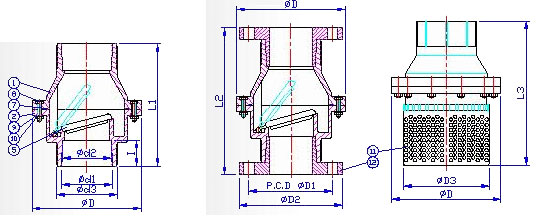

No. Size Specification Material Gasket O-Ring Interface
VP-420 3″-4″ ANSI,JIS,DIN PVC EPDM,FPM EPDM,FPM Socket，Threaded，Flanged
VP-430 3″-4″ ANSI,JIS,DIN PVC EPDM,FPM EPDM,FPM Socket，Threaded，Flanged





NO. PART MATEPIAL QTY
 1 Upper body UPVC 1
2 Lower body UPVC 1
5 Valve EPDM,FPM 1
7 ORing EPDM,FPM 1
8 Screw SUS 304 10
9 Plain washers SUS 304 10
10 Screw cap SUS 304 10
11 Filter UPVC 1
12 Flange UPVC 2





SIZE 3" 4"
Nom (80mm） (100mm）
JIS D1 150 175
d1 89.6 114.7
d2 88.83 113.98
I 47.63 57.15
ANSI D1 152 191
d1 89.31 114.76
d2 88.7 114.07
I 47.63 57.15
DIN d1 90.3 110.4
d2 90.1 110.1
I 51 61
thd./in NPT 8 8
BSPT 11 11
D 196 210
D2 185 210
D3 153 153
d3 108 133
L1 221 271
L2 260 300
L3 275 320
