| No. | Size | Specifications | Material | Shim | Interface |
| VP-450 | ½″-8″ | ANSI,JIS,DIN | PVC | EPDM,FPM,NBR，PTFE | Flanged |
| VP-451 | ½″-8″ | ANSI,JIS,DIN | CPVC | EPDM,FPM,NBR，PTFE | Flanged |
| VP-453 | ½″-8″ | ANSI,JIS,DIN | PVDF | EPDM,FPM,NBR，PTFE |
Flanged
|
| VP-454 | ½″-8″ | ANSI,JIS,DIN | PP | EPDM,FPM,NBR，PTFE | Flanged |

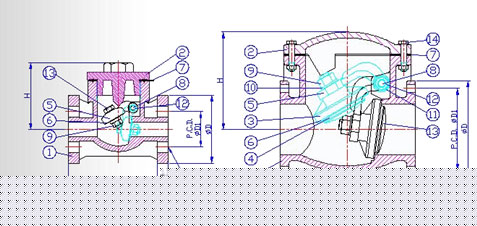

| NO. | PART | MATEPIAL | QTY |
| 1 | body | HI-PVC,UPVC,CPVC,PP,PVDF | 1 |
| 2 | Upper cover | HI-PVC,UPVC,CPVC,PP,PVDF | 1 |
| 3 | Wobble plate | HI-PVC,UPVC,CPVC,PP,PVDF | 1 |
| 4 | Pad | HI-PVC,UPVC,CPVC,PP,PVDF | 1 |
| 5 | Swing arm | HI-PVC,UPVC,CPVC,PP,PVDF | 1 |
| 6 | Sealing ring | EPDM,FRM,NBR,PTFE | 1 |
| 7 | Body gasket | EPDM,FRM,NBR,PTFE | 1 |
| 8 | Shaft | PTFE | 1 |
| 9 | Screw cap | HI-PVC,UPVC,CPVC,PP,PVDF | 1 |
| 10 | Plain washers | HI-PVC,UPVC,CPVC,PP,PVDF | 1 |
| 11 | Liner | EPDM,FRM,NBR,PTFE | 1 |
| 12 | Body bolts | HI-PVC,UPVC,CPVC,PP,PVDF | 1 |
| 13 | Pad bolt | HI-PVC,UPVC,CPVC,PP,PVDF | 4-8 |
| 14 | Screw | STEEL,SUS 304 | 8-12 |
| SIZE | ½〞 | ¾" | 1" | 1-¼" | 1-½" | 2" | 2-½" | 3" | 4" | 6" | 8" | |
| Nom. | 15mm | 20mm | 25mm | 32mm | 40mm | 50mm | 65mm | 80mm | 100mm | 150mm | 200mm | |
| JIS | D | 100 | 100 | 125 | 140 | 140 | 155 | 175 | 185 | 210 | 285 | 343 |
| D1 | 70 | 75 | 90 | 100 | 105 | 120 | 140 | 150 | 175 | 240 | 290 | |
| L | 140 | 140 | 160 | 180 | 180 | 200 | 240 | 260 | 300 | 400 | 500 | |
| n-¢e | 4-¢15 | 4-¢15 | 4-¢19 | 4-¢19 | 4-¢19 | 4-¢19 | 4-¢19 | 8-¢19 | 8-¢19 | 8-¢23 | 12-¢23 | |
| ANSI | D | 100 | 100 | 108 | 127 | 127 | 152 | 178 | 191 | 229 | 285 | 343 |
| D1 | 60 | 70 | 79 | 88.9 | 98 | 121 | 140 | 152 | 191 | 241 | 298 | |
| L | 140 | 140 | 160 | 180 | 180 | 200 | 240 | 260 | 300 | 400 | 500 | |
| n-¢e | 4-¢16 | 4-¢16 | 4-¢16 | 4-¢16 | 4-¢16 | 4-¢19 | 4-¢19 | 4-¢19 | 8-¢19 | 8-¢22 | 8-¢22 | |
| DIN | D | 100 | 100 | 115 | 150 | 150 | 165 | 185 | 200 | 220 | 285 | 343 |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 240 | 295 | |
| L | 140 | 140 | 160 | 180 | 180 | 200 | 240 | 260 | 300 | 400 | 500 | |
| n-¢e | 4-¢14 | 4-¢14 | 4-¢18 | 4-¢18 | 4-¢18 | 4-¢18 | 4-¢18 | 8-¢18 | 8-¢18 | 8-¢23 | 8-¢23 | |
| T | 15 | 15 | 17 | 19 | 19 | 20 | 22 | 22 | 24 | 26 | 30 | |
| H | 93 | 93 | 117.5 | 136 | 137 | 165 | 170.5 | 170 | 216 | 286 | 336 | |
