Product Name：Pneumatic/electric Actuator double Union Ball valve
Product Number：
Added time：2014-05-13
Views：152
QQ交流
Product Details:

NO. Size Specifications Material Pedestal O Ring Interface
VP-680 690 ½″-4″ ANSI,JIS,DIN，BS PVC PTFE EPDM,FPM Socket，Threaded，Flanged
VP-681 691 ½″-4″ ANSI,JIS,DIN，BS CPVC PTFE EPDM,FPM Socket，Threaded，Flanged
VP-683 693 ½″-4″ ANSI,JIS,DIN，BS PVDF PTFE EPDM,FPM Socket，Threaded，Flanged
VP-684 694 ½″-4″ ANSI,JIS,DIN，BS PP PTFE EPDM,FPM Socket，Threaded，Flanged
VP-685 695 ½″-4″ ANSI,JIS,DIN，BS ABS PTFE EPDM,FPM Socket，Threaded，Flanged

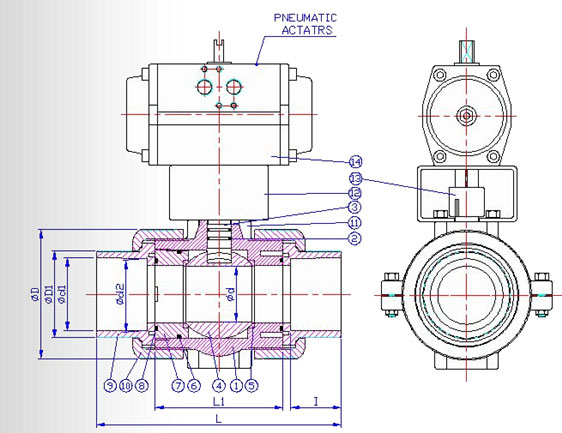

NO. PART MATEPIAL QTY
1 Body UPVC，CPVC,PP,PVDF,ABS 1
2 O Ring EPDM,FRM 2
3 Center column UPVC，CPVC,PP,PVDF,ABS 1
4 Ball UPVC，CPVC,PP,PVDF,ABS 1
5 Pedestal PTFE 2
6 O Ring EPDM,FRM 1
7 Nettep UPVC，CPVC,PP,PVDF,ABS 1
8 O Ring EPDM,FRM 2
9 Killax UPVC，CPVC,PP,PVDF,ABS 2
10 Screw cap UPVC，CPVC,PP,PVDF,ABS 2
11 Support frame UPVC 2
12 Fixed frame SUS 1
13 Electric box SUS 1
14 Pneumatic cylinder EXTRUDED ALUMINUM ALLOY 1



SIZE ½〞 ¾" 1" 1-¼" 1-½" 2" 2-½" 3" 4"
Nom. 15mm 20mm 25mm 32mm 40mm 50mm 65mm 80mm 100mm
JIS d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7
d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98
I 22.22 25.4 28.6 31.8 34.9 38.1 60.7 63 69
ANSI d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76
d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07
I 22.22 25.4 28.58 31.75 34.93 38.1 44.45 47.63 57.15
DIN d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4
d2 20.1 25.1 32.1 40.1 50.1 63.1 75.1 90.1 110.1
I 16 19 22 26 31 38 44 51 61
  d1 21.5 26.9 33.7 42.4 48.4 60.5
BS d2 21.3 26.7 33.5 42.2 48.2 60.3
  I 16.5 19.5 22.5 27 30 36
thd./in NPT 14 14 11.5 11.5 11.5 11.5 8 8 8
  PT 14 14 11 11 11 11 11 11 11
D 45 55 66 82 98 120 140 163 225
D1 31 37 44 54 65 79 92 108 146
d 13 18 23 30 38 48 61 69 99
L 112 132 144 165 171 200 273 303 326
L1 60 73 78 87 92 112 136 158 176

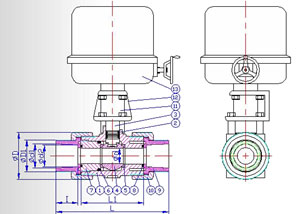

NO. PART MATEPIAL QTY
1 Body UPVC，CPVC,PP,PVDF,ABS 1
2 O Ring EPDM,FRM 2
3 Center column UPVC，CPVC,PP,PVDF,ABS 1
4 Ball UPVC，CPVC,PP,PVDF,ABS 1
5 Pedestal PTFE 2
6 O Ring EPDM,FRM 1
7 Nettep UPVC，CPVC,PP,PVDF,ABS 1
8 O Ring EPDM,FRM 2
9 Killax UPVC，CPVC,PP,PVDF,ABS 2
10 Screw cap UPVC，CPVC,PP,PVDF,ABS 2
11 Support frame SUS 1
12 Fixed frame SUS 1
13 Electric box ALUMINUM ALLOY ENCLOSURE 1



SIZE ½〞 ¾" 1" 1-¼" 1-½" 2" 2-½" 3" 4"
Nom. 15mm 20mm 25mm 32mm 40mm 50mm 65mm 80mm 100mm
JIS d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7
d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98
I 22.22 25.4 28.6 31.8 34.9 38.1 60.7 63 69
ANSI d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76
d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07
I 22.22 25.4 28.58 31.75 34.93 38.1 44.45 47.63 57.15
DIN d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4
d2 20.1 25.1 32.1 40.1 50.1 63.1 75.1 90.1 110.1
I 16 19 22 26 31 38 44 51 61
  d1 21.5 26.9 33.7 42.4 48.4 60.5
BS d2 21.3 26.7 33.5 42.2 48.2 60.3
  I 16.5 19.5 22.5 27 30 36
thd./in NPT 14 14 11.5 11.5 11.5 11.5 8 8 8
  PT 14 14 11 11 11 11 11 11 11
D 45 55 66 82 98 120 140 163 225
D1 31 37 44 54 65 79 92 108 146
d 13 18 23 30 38 48 61 69 99
L 112 132 144 165 171 200 273 303 326
L1 60 73 78 87 92 112 136 158 176
