| NO. | Size | Specifications | Material | Shim | O Ring | Diaphragm | Interface | Bolt |
| VP-710 | ½″-8″ | ANSI,JIS,DIN | PVC | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304/316 |
| VP-711 | ½″-8″ | ANSI,JIS,DIN | CPVC | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304/316 |
| VP-713 | ½″-8″ | ANSI,JIS,DIN | PVDF | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304/316 |
| VP-714 | ½″-8″ | ANSI,JIS,DIN | PP | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304/316 |

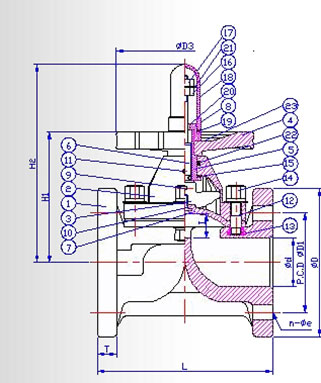

NO.
PART
MATEPIAL
QTY
1
Body
UPVC，CPVC,PP,PVDF
1
2
Upper cover
UPVC，CPVC,PP,PVDF，PP+GF
1
3
Compressed body
FC,SUS,PPG,PVDF
1
4
Put the wheel
PP
1
5
Sleeve
C3602，SUS
1
6
Center column
C3602，SUS
1
7
Diaphragm
EPDM,FRM,PTFE
1
8
Fastening nut
UPVC,CPVC,PVDF
1
9
Spring pin
SUS 304
1
10
Embedded columns
C3604，SUS304
1
11
Spray tube
C3604，(65-200)
1
12
Bolt and Ping Huasi
200mm-16set
13
Embedded nut
150mm，-12set
65-125mm-8set
SUS 304/316
14
Nuts and Ping Huasi
25-50mm-6set
15
Check pile bearing
STANDARD(100-200)
1
16
Stop nut
SUS 304
1
17
Adjusting nut
SUS 304
1
18
Transparent cover
AS
1
19
Shim
EPDM
1
20
China Division
SUS 304
1
21
Flow washers
SUP
1
22
O Ring
NBR
1
23
Nameplate
UPVC
1
| SIZE | ½〞 | ¾" | 1" | 1-½" | 2" | 2-½" | 3" | 4" | 6" | 8" | |
| Nom. | 15mm | 20mm | 25mm | 40mm | 50mm | 65mm | 80mm | 100mm | 150mm | 200mm | |
| JIS | D | 95 | 100 | 125 | 140 | 155 | 175 | 185 | 210 | 291 | 343 |
| D1 | 70 | 75 | 90 | 105 | 120 | 140 | 150 | 175 | 240 | 290 | |
| n-¢e | 4-15 | 4-15 | 4-19 | 4-19 | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 12-23 | |
| L | 110 | 120 | 130 | 180 | 210 | 250 | 280 | 340 | 480 | 570 | |
| ANSI | D | 89 | 98 | 108 | 127 | 152 | 178 | 191 | 229 | 291 | 343 |
| D1 | 61 | 70 | 79 | 98 | 121 | 140 | 152 | 191 | 241 | 298 | |
| n-¢e | 4-16 | 4-16 | 4-16 | 4-16 | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | |
| L | 108 | 150 | 150 | 176 | 202 | 250 | 264 | 329 | 480 | 570 | |
| DIN | D | 95 | 105 | 115 | 150 | 165 | 185 | 200 | 220 | 291 | 343 |
| D1 | 65 | 75 | 85 | 110 | 125 | 145 | 160 | 180 | 240 | 295 | |
|
n-¢e |
4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-23 | 8-23 | |
| L | 130 | 150 | 160 | 200 | 230 | 290 | 310 | 350 | 480 | 570 | |
 JIS
|
UPVC,CPVC | 12 | 13 | 13 | 17 | 20 | 22 | 22 | 23 | 26 | 30 |
| PP,PVDF | 13 | 14 | 14 | 18 | 21 | 23 | 24 | 25 | 25 | 35 | |
| ANSI T | UPVC,CPVC | 12 | 15 | 18 | 15 | 19 | 20 | 20 | 23 | 26 | 30 |
| PP,PVDF | 13 | 16 | 19 | 16 | 20 | 21 | 23 | 25 | 28 | 35 | |
| DIN | UPVC,CPVC | 19 | 20 | 20 | 19 | 22 | 22 | 24 | 24 | 26 | 30 |
| PP,PVDF | 20 | 21 | 21 | 20 | 23 | 23 | 26 | 26 | 28 | 35 | |
| D2 | 54×70 | 63×78 | 63×88 | 125 | 148 | 182 | 203 | 255 | 385 | 430 | |
| D3 | 95 | 95 | 110 | 150 | 150 | 210 | 210 | 250 | 410 | 405 | |
| d | 13 | 18 | 25 | 41 | 52 | 67 | 78 | 100 | 148 | 198 | |
| H1 | 85 | 94 | 98 | 130 | 148 | 189 | 250 | 275 | 334 | 450 | |
| H2 | 130 | 137 | 160 | 200 | 225 | 268 | 343 | 383 | 476 | 627 | |
| I | 10 | 12 | 15 | 22 | 31 | 39 | 48 | 60 | 70 | 95 | |
