| NO. | Size | Specifications | Material | Pedestal | O Ring | Diaphragm | Interface | Bolt |
| VP-720 | ½″-2″ | DIN | PVC | EPDM | NBR | EPDM,FPM,PTFE | Spigot | SUS 304/316 |
| VP-721 | ½″-2″ | DIN | CPVC | EPDM | NBR | EPDM,FPM,PTFE | Spigot | SUS 304/316 |
| VP-723 | ½″-2″ | DIN | PVDF | EPDM | NBR | EPDM,FPM,PTFE | Spigot | SUS 304/316 |
| VP-724 | ½″-2″ | DIN | PP | EPDM | NBR | EPDM,FPM,PTFE | Spigot | SUS 304/316 |
| VP-730 | ½″-2″ | ANSI,JIS,DIN | PVC | EPDM | NBR/EPDM,FRM | EPDM,FPM,PTFE | Socket，Threaded | SUS 304/316 |
| VP-731 | ½″-2″ | ANSI,JIS,DIN | CPVC | EPDM | NBR/EPDM,FRM | EPDM,FPM,PTFE | Socket，Threaded | SUS 304/316 |
| VP-733 | ½″-2″ | ANSI,JIS,DIN | PVDF | EPDM | NBR/EPDM,FRM | EPDM,FPM,PTFE | Socket，Threaded | SUS 304/316 |
| VP-734 | ½″-2″ | ANSI,JIS,DIN | PP | EPDM | NBR/EPDM,FRM | EPDM,FPM,PTFE | Socket，Threaded | SUS 304/316 |
NO.
PART
MATEPIAL
QTY
1
Body
UPVC，CPVC,PP,PVDF
1
2
Upper cover
UPVC，CPVC,PP,PVDF，PP+GF
1
3
Compression body
FC,SUS
1
4
Put the wheel
PP
1
5
Set of copper
C3602
1
6
Center column
C3602
1
7
Diaphragm
EPDM,FRM,PTFE
1
8
Fastening nut
UPVC，CPVC,PP,PVDF，PP+GF
1
9
Spring pin
SUS 304
1
10
Embedded columns
C3602，SUS304
1
11
Pressure plate
SUS304
1
12
Bolt and a flat washer
SUS304
4
13
Nut and plain washers
SUS304
4
14
Nameplate
PVC
1
15
Embedded columns
C3604
2
16
Stop nut
SUS 304
1
17
Adjusting nut
SUS 304
1
18
Transparent cover
AS
1
19
Shim
EPDM
1
20
washers
SUS 304
1
21
Flow washers
ABS
1
22
O Ring
NBR
1
23
O Ring
EPDM,FPM
2
24
Killax
UPVC,CPVC,PP,PVDF
2
25
Screw cap
UPVC,CPVC,PP,PVDF
2

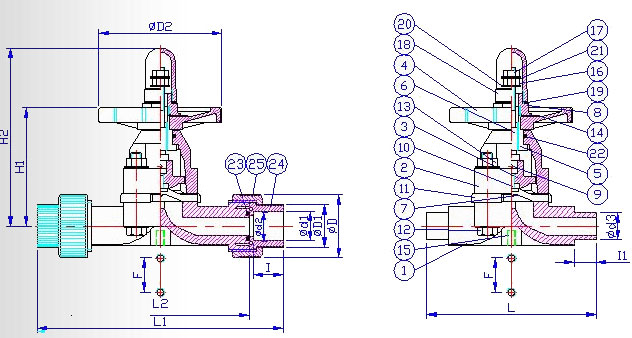

| SIZE | ½〞 | ¾" | 1" | 1-½" | 2" | |
| Nom. | 15mm | 20mm | 25mm | 40mm | 50mm | |
| JIS | d1 | 22.3 | 26.3 | 32.33 | 48.46 | 60.56 |
| d2 | 21.7 | 25.7 | 31.67 | 47.54 | 59.44 | |
| I | 22.22 | 25.4 | 28.6 | 34.9 | 38.1 | |
| ANSI | d1 | 21.54 | 26.87 | 33.65 | 48.56 | 60.63 |
| d2 | 21.23 | 26.57 | 33.27 | 48.11 | 60.17 | |
| I | 22.22 | 25.4 | 28.58 | 34.93 | 38.1 | |
| DIN | d1 | 20.3 | 25.3 | 32.3 | 50.3 | 63.3 |
| d2 | 20.1 | 25.1 | 32.1 | 50.1 | 63.1 | |
| I | 16 | 19 | 22 | 31 | 38 | |
| d1 | 21.5 | 26.9 | 33.7 | 48.4 | 60.5 | |
| BS | d2 | 21.3 | 26.7 | 33.5 | 48.2 | 60.3 |
| I | 16.5 | 19.5 | 22.5 | 30 | 36 | |
| thd./in | NPT | 14 | 14 | 11.5 | 11.5 | 11.5 |
| BSPT | 14 | 14 | 11 | 11 | 11 | |
| D | 45 | 55 | 66 | 97 | 120 | |
| D1 | 31 | 37 | 44 | 64 | 78 | |
| D2 | 95 | 95 | 110 | 150 | 150 | |
| d3 | 20 | 25 | 32 | 50 | 63 | |
| L2 | 130 | 150 | 160 | 200 | 230 | |
| L1 | 180 | 207 | 224 | 276 | 317 | |
| L | 124 | 144 | 154 | 194 | 224 | |
| H2 | 128 | 138 | 144 | 220 | 225 | |
| H1 | 86 | 95 | 98 | 150 | 148 | |
| I1 PVC | 16 | 19 | 22 | 31 | 34 | |
| PP,PVDF | 14.5 | 16 | 18 | 23.5 | 27.5 | |
| S | 11 | 11 | 11 | 15 | 15 | |
| F | 25 | 25 | 25 | 45 | 45 | |
| M | M6 | M6 | M6 | M8 | M8 | |
