| NO. | SIZE | STANDARD | Material | SEAT | ORING | DISC | END TYPE |
| VP-820 | 2″-24 | ANSI,JIS,DIN | PVC | EPDM,FPM | EPDM,FPM | PP | Flanged |
| VP-821 | 2″-24 | ANSI,JIS,DIN | CPVC | EPDM,FPM | EPDM,FPM | CPVC | Flanged |
| VP-823 | 2″-24 | ANSI,JIS,DIN | PVDF | EPDM,FPM | EPDM,FPM | PVDF | Flanged |
| VP-824 | 2″-24 | ANSI,JIS,DIN | PP | EPDM,FPM | EPDM,FPM | PP | Flanged |

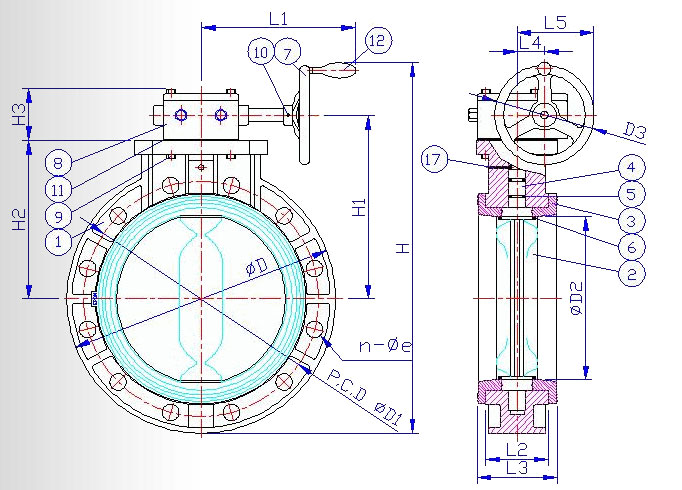

NO.
PART
MATEPIAL
QTY
1
BODY
UPVC，CPVC,PP,PVDF
1
2
DISC
CPVC,PP,PVDF
1
3
SEAL
EPDM,FPM
1
4
STEM
SUS 410
1
5
O RING
EPDM,FPM
2
6
O RING
EPDM,FPM
2
7
HANDWHEEL
FC20
1
8
GEAR BOX
CI POWDER PAINT
1
9
BOLT&WASHER
SUS 304
4
10
SPRING PIN
STEEL
1
11
PACKING
EPDM 6
1
12
SMALL HANDLE
STEEL
1
13
KEY
STEEL
1
14
SEAL
EPDN 14
2
15
METALSTAT
SUS 16
1
16
INSERT NUT
SUS 16
4-8
17
PIN
SUS
1
| SIZE | 2〞 | 2-½" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" | |
| Nom. | 50mm | 65mm | 80mm | 100mm | 125mm | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm | 450mm | 500mm | 600mm | |
| JIS | D1 | 120 | 140 | 150 | 175 | 210 | 240 | 290 | 355 | 400 | 445 | 510 | 565 | 620 | 730 |
| n-¢e | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-25 | 16-25 | 16-25 | 16-27 | 20-27 | 20-27 | 4-33 | |
| ANSI | D1 | 121 | 140 | 152 | 191 | 216 | 241 | 298 | 362 | 432 | 476 | 540 | 578 | 635 | 750 |
| n-¢e | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 | 12-25 | 12-25 | 12-29 | 16-29 | 16-32 | 20-32 | 20-35 | |
| DIN | D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | 460 | 515 | 565 | 620 | 725 |
| n-¢e | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-22 | 8-22 | 12-22 | 12-22 | 16-22 | 16-26 | 20-27 | 20-27 | 20-30 | |
| D | 165 | 185 | 200 | 229 | 257 | 285 | 343 | 411 | 490 | 530 | 600 | 630 | 696 | 813 | |
| D2 | 56.5 | 69.5 | 79.5 | 102.5 | 130 | 153 | 203 | 255 | 310 | 360 | 398 | 453 | 502 | 603 | |
| D3 | 159 | 159 | 159 | 159 | 159 | 202 | 202 | 205 | 250 | 250 | 300 | 300 | 406 | 406 | |
| H | 287 | 307 | 309 | 351.5 | 398 | 463 | 525 | 591 | 706 | 732 | 869 | 910 | 1037 | 1120 | |
| H1 | 12 | 135 | 137 | 147 | 198 | 221 | 254 | 286 | 344 | 342 | 425 | 445 | 486 | 513 | |
| H2 | 103 | 113 | 115 | 135.5 | 165 | 177 | 210 | 242 | 302 | 300 | 350 | 370 | 410 | 465 | |
| H3 | 53 | 53 | 53 | 53 | 75 | 77.5 | 77.5 | 77.5 | 76 | 78 | 120 | 117 | 143 | 133 | |
| L1 | 140 | 140 | 140 | 140 | 140 | 284.5 | 284.5 | 284.5 | 330 | 330 | 353 | 353 | 390 | 350 | |
| L2 | 34.5 | 37 | 37 | 47 | 57 | 62 | 76 | 95.5 | 116.5 | 113 | 152.5 | 163.5 | 170 | 191 | |
| L3 | 43 | 46 | 46 | 56 | 69 | 70.5 | 85 | 109 | 133 | 127 | 168 | 189.5 | 189 | 209 | |
| L4 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 60 | 60 | 60 | 60 | 60 | 81 | 81 | 120 | 135 | |
| L5 | 121 | 121 | 121 | 121 | 121 | 161 | 161 | 161 | 185 | 185 | 231 | 231 | 323 | 335 | |
