| NO. | SIZE | STANDARD | MATERIAL | SEAT | ORING | END TYPE |
| VP-900 | 3/8〞-2" | ANSI,JIS,DIN | UPVC | PTFE | EPDM,FPM | Socket，Threaded，Flanged |
| VP-901 | 3/8〞-2" | ANSI,JIS,DIN | CPVC | PTFE | EPDM,FPM | Socket，Threaded，Flanged |
| VP-910 | 3/8〞-4" | ANSI,JIS,DIN | UPVC | EPDM | EPDM,FPM | Socket，Threaded，Flanged |
| VP-911 | 3/8〞-2" | ANSI,JIS,DIN | CPVC | EPDM | EPDM,FPM | Socket，Threaded，Flanged |
| VP-915 | 1/2"-2" | ANSI,JIS,DIN | ABS | EPDM | EPDM,FPM | Socket，Threaded，Flanged |

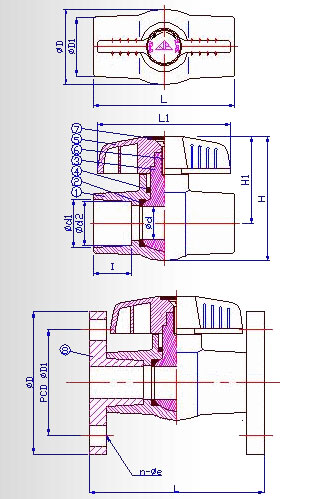

| NO. | PART | MATEPIAL | QTY |
| 1 | BODY | UPVC，CPVC,ABS | 1 |
| 2 | SEAT | EPDM,FPM | 2 |
| 3 | BALL | UPVC，CPVC,ABS,PP | 1 |
| 4 | ORIGN | EPDM,FPM | 1 |
| 5 | Handle | ABS | 1 |
| 6 | Screw | ZING-PLATED STEEL | 1 |
| 7 | Handle cover | ABS | 1 |
| 8 | Flange | UPVC，CPVC,ABS,PP | 1 |
| SIZE | 3/8" | ½" | 3/4" | 1" | 1-1/4" | 1-½" | 2" | 2-½" | 3" | 4" | |
| Nom. | 10mm | 15mm | 20mm | 25mm | 32mm | 40mm | 50mm | 65mm | 80mm | 100mm | |
| JIS | d1 | 18.4 | 22.3 | 26.3 | 32.33 | 38.43 | 48.46 | 60.56 | 76.6 | 89.6 | 114.7 |
| d2 | 17.78 | 31.7 | 25.7 | 31.67 | 37.57 | 47.54 | 59.44 | 75.87 | 88.83 | 113.98 | |
| ANSI | d1 | 17.45 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.38 | 89.31 | 114.76 |
| d2 | 17.04 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.7 | 114.1 | |
| DIN | d1 | 16.3 | 20.3 | 25.3 | 32.3 | 40.3 | 50.3 | 63.3 | 75.3 | 90.5 | 109.9 |
| d2 | 15.9 | 19.9 | 24.9 | 31.9 | 39.9 | 49.9 | 62.9 | 74.9 | 89.9 | 110.6 | |
| d1 | 17.5 | 21.7 | 27.15 | 33.95 | 41.85 | 48.65 | 60.75 | 75.75 | 89.35 | 114.95 | |
| BS | d2 | 19.8 | 21 | 26.35 | 33.15 | 42.65 | 47.85 | 59.95 | 74.95 | 88.45 | 113.65 |
| d1 | 14 | 16 | 19 | 22 | 26 | 31 | 38 | 44 | 51 | 61 | |
| I | d2 | 19.05 | 22.22 | 25.4 | 28.57 | 31.75 | 34.93 | 38.1 | 44.45 | 47.63 | 57.15 |
| thd./in | BSPT | 19 | 14 | 14 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| NPT | 18 | 14 | 14 | 11.5 | 11.5 | 11.5 | 11.5 | 8 | 8 | 8 | |
| D2 | 31 | 38 | 49 | 57 | 63 | 75 | 92 | 110 | 133 | 170 | |
| D0 | 24 | 30 | 38 | 45 | 54 | 62 | 77 | 92 | 106 | 135 | |
| d | 11.7 | 14.4 | 20 | 25.3 | 28.9 | 36 | 45.8 | 60 | 74 | 98 | |
| H1 | 33.4 | 44.4 | 53.75 | 66.2 | 67 | 75.7 | 88.5 | 105 | 125 | 148 | |
| H | 48.9 | 63.3 | 78.3 | 94.7 | 98.6 | 113.2 | 134.5 | 160 | 191.5 | 233 | |
| L1 | 60 | 70 | 88 | 100 | 100 | 109 | 134 | 178 | 224 | 276 | |
| L2 | 68 | 83 | 95 | 106 | 114 | 130 | 147 | 204 | 229 | 300 | |
CTS
| SIZE | 1/2" | 3/4" | 1" | 1-1/4" | 1-½" | 2" | |
| Nom. | 15mm | 20mm | 25mm | 32mm | 40mm | 50mm | |
| D2 | 32 | 39.6 | 52 | 57 | 63 | 79 | |
| D0 | 24 | 30 | 38 | 45 | 54 | 65.6 | |
| d1 | 16.08 | 22.45 | 28.83 | 35.2 | 41.66 | 54.38 | |
| d2 | 15.72 | 22.1 | 28.47 | 34.85 | 41.2 | 53.92 | |
| I | 18.8 | 22.45 | 22.86 | 27.94 | 33.02 | 43.18 | |
| d | 12.4 | 18.3 | 23.5 | 25.3 | 28.9 | 36 | |
| H1 | 35.7 | 44.4 | 53.75 | 66.2 | 67 | 75.7 | |
| H | 51.7 | 64.4 | 79 | 94.7 | 98.6 | 113.2 | |
| L2 | 67.8 | 83 | 95 | 106 | 114 | 130 | |
