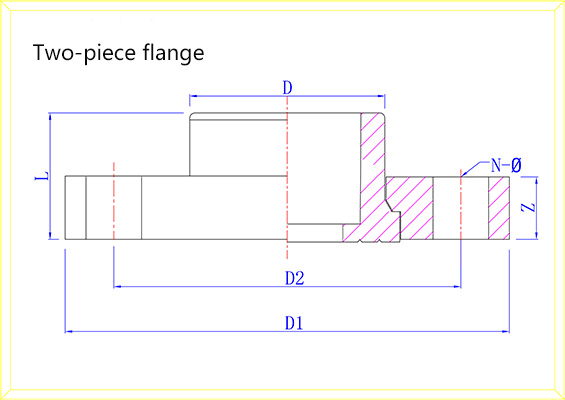

Product Name：Two-piece flange
Product Number：
Added time：2014-06-28
Views：189
QQ交流
Product Details:





Model Size Specification Material Interface
VP-270 2 ″-16″ ANSI PVC Socket，Threaded/Flanged
VP-271 2 ″-16″ ANSI CPVC Socket，Threaded/Flanged



SIZE

2 2-½" 3" 4" 6" 8" 10" 12" 14" 16" 18" 20" 24"
Nom.
D1 152 178 192 229 284 343 406 481 533 600 635 699 813
D2 121 140 152 191 241 298 362 432 476 540 578 635 749
D 76 92 108 133 191 238 296 346 395 452 507 564 675
L 43 49 54 64 85 118 150 191 195 220 280 310 346
Z 20 24 26 28 32 36 42 42 50.8 60 62 63 72
N-¢ 4-19 4-19 4-19 8-19 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
